Raspberry Pi 12v Fan Controller

Set up the hardware temp sensor. You have to sample the number of pulses over a period of time and divide it by 2. Used in this project.

l eau d issey krups va ea815p l recapin lacoste parfum men la rive hitfire kyoya beyblade fang leone kitaro silk road launch injector tester

How To Control A Dc Fan Using The Raspberry Pi

Pwm Controlled 12v Fan With Dc Dc Converter Raspberry Pi Stack

Smart Raspberry Pi Cpu Fan Hackster Io

Ultimate Raspberry Pi Build 05 Cooling The Pi With A 12v Pc Fan

Control 12v Fan With Separate Pwm Pin Doing It Right Will It

Fan Controller Using Stp16nf06l Details Hackaday Io

In order to connect the temperature sensor to the raspberry pi follow the instructions from this project.

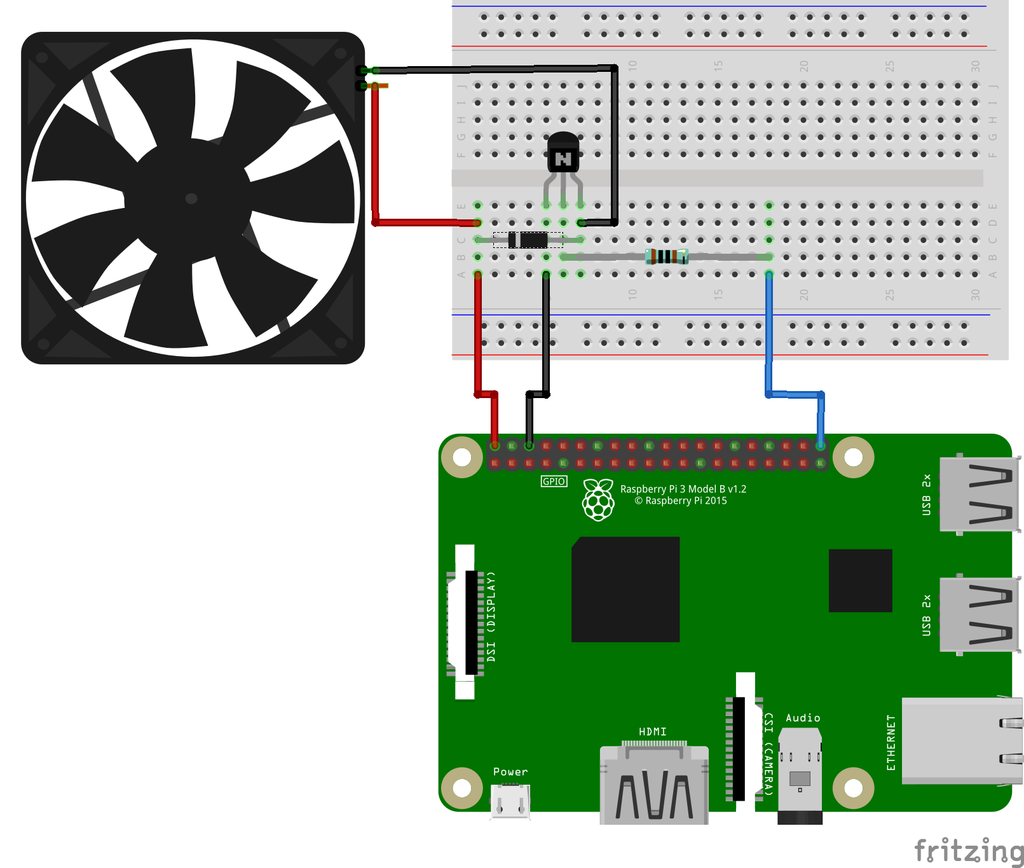

Raspberry pi 12v fan controller. Use the wiring diagram below to connect your raspberry pi to the temperature sensor and to the fan through the transistor. Most domestic fans have different speed settings but these are often in the form of mechanical buttons which may be difficult to control using a raspberry pi. The fan controller will adjust the fan s speed to keep the raspberry pi s temperature below the setpoint specified in the. Hi i m fairly new to the electronic world and i recently bought a raspberry pi i made a perspex case for it and i still had a 12v fan laying around.

Start writing help. Follow the instructions in this article to connect a temperature sensor to the raspberry pi. The pi can output 3 3v pwm to control fan speeds. The control of raspberry pi servo motors is very simple and thanks to the small size and weight they are used in many areas.

A diode is a one way street for electrons when using transistors we need to use diodes to block reverse current from coming back from the high voltage appliance fan back to our controller in this case a raspberry pi. Raspberry pi building a pwm fan controller with dotnet iot. I ve had a heap of fun and just a tad amount of pain recently building a pwm fan controller for my pi. The fans will need to be powered separately.

A 12v pc fan operates on 25 hertz cycle. I really really wanted to get all this to work with. Setting up the hardware. Follow the wiring diagram below to connect the raspberry pi to the temp sensor and to the fan through the transistor.

You need to confirm that your fans can be controlled by 3 3v pwm as a fan input. Fans are useful devices that create airflow to cool something down provide a fresh supply of air or help the circulation of aerosols. If a 12 volt current was applied to the raspberry pi it would short it out. The diode is there to prevent the fan from damaging.

I believe that on some fans the yellow wire is an output which produces pulses indicating the current speed. The pi can t supply enough juice at 5v let alone 12v.
